Monday, August 16, 2010

IONOSPHERIC DISTURBANCE

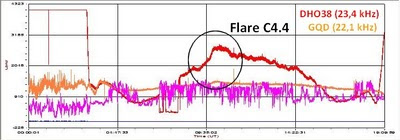

The C4-class solar flare of Aug. 14th bathed Earth's upper atmosphere in X-rays and caused a wave of ionization to sweep over Europe. This improved the propagation of low-frequency radio signals which use the ionosphere as a reflector to skip over the horizon. A SID monitor operated by Jan Karlovsky of Hlohovec, Slovakia, recorded the effect:

"SID" stands for Sudden Ionospheric Disturbance, and a "SID monitor" is a radio receiver that monitors ~20 kHz signals from distant transmitters. "My system easily detected the effects of the solar flare," says Karlovsky. "I monitor two stations: DHO38 in Germany (23.4 kHz) and GQD in Great Britian (22.1 kHz). The German signal was most strongly boosted."

With solar activity on the rise, sudden ionospheric disturbances will become more common. Interested? Stanford University tells you how to build your own SID monitor.


source
Posted by at
Subscribe to: Posts (Atom)

My Stamp Collecting Blog

My Stamp Collecting Blog

Counter Added January 1, 2011

free counters

HOW TO READ PROPAGATION NUMBERS

The A index [ LOW is GOOD ]

  • 1 to 6 is BEST
  • 7 to 9 is OK
  • 11 or more is BAD

Represents the overall geomagnetic condition of the ionosphere ("Ap" if averaged from the Kp-Index) (an average of the eight 3-hour K-Indices) ('A' referring to amplitude) over a given 24 hour period, ranging (linearly) typically from 1-100 but theoretically up to 400.

A lower A-Index generally suggests better propagation on the 10, 12, 15, 17, & 20 Meter Bands; a low & steady Ap-Index generally suggest good propagation on the 30, 40, 60, 80, & 160 Meter Bands.

SFI index [ HIGH is GOOD ]

  • 70 NOT GOOD
  • 80 GOOD
  • 90 BETTER
  • 100+ BEST

The measure of total radio emissions from the sun at 10.7cm (2800 MHz), on a scale of 60 (no sunspots) to 300, generally corresponding to the sunspot level, but being too low in energy to cause ionization, not related to the ionization level of the Ionosphere.

Higher Solar Flux generally suggests better propagation on the 10, 12, 15, 17, & 20 Meter Bands; Solar Flux rarely affects the 30, 40, 60, 80, & 160 Meter Bands.

K index [ LOW is GOOD ]

  • 0 or 1 is BEST
  • 2 is OK
  • 3 or more is BAD
  • 5 is VERY VERY BAD

The overall geomagnetic condition of the ionosphere ("Kp" if averaged over the planet) over the past 3 hours, measured by 13 magnetometers between 46 & 63 degrees of latitude, and ranging quasi-logarithmically from 0-9. Designed to detect solar particle radiation by its magnetic effect. A higher K-index generally means worse HF conditions.

A lower K-Index generally suggests better propagation on the 10, 12, 15, 17, & 20 Meter Bands; a low & steady Kp-Index generally suggest good propagation on the 30, 40, 60, 80, & 160 Meter Bands.
